Old records lie. Not on purpose, but they age badly. A deed from 1962 or a plat from 1988 was drawn with the tools of that time, and land surveying has moved far past those tools since. For a developer, the space between what the paper says and what the dirt actually holds can cost real money.

Picture a clean deal. The title looks clear. The old survey in the file looks fine. Then a crew walks the site with today’s gear and finds a fence sitting three feet over the line. Or an easement drawn wrong. Or a flood edge that shifted years ago. This article shows what current methods catch that old files miss, and why you want to know before you close or dig.

Why old records fall short

Paper records freeze one moment. They show what one surveyor measured, on one day, with the gear they had. But land does not sit still. Fences move. Owners add sheds without permits. A file that stopped updating in 1990 knows none of it.

Older plats also carried built-in errors. A survey done with a chain and transit could be off by feet, not inches. Those small misses stacked up across a whole subdivision. Lay an old plat over fresh field data and the corners almost never line up clean.

Encroachments the old file never saw

A modern boundary survey walks the real, current edge of your parcel. It picks up things that showed up long after the last recorded map. This is where deals go sideways fast.

Common finds include a neighbor’s driveway crossing the line, a shared fence built in the wrong spot, and a garage corner that sits on your future pad site. None of these live in the old record. All of them can stall a permit or a sale.

For a developer, one late encroachment can force a redesign. Catch it early and you fix it with a simple line agreement. Catch it after grading and you fix it with lawyers.

Gaps and overlaps in the old deeds

Neighboring deeds were often written by different people over many decades. The words did not always match the ground or each other. That mismatch hides two nasty problems: gaps and overlaps.

A gap is a strip of land that no deed claims. An overlap is a strip that two deeds both claim. Old records rarely flag either one. A current survey ties every corner to the same control and shows you the true fit.

If your project sits near one of these, you want it on paper up front. It changes what you can build and where. It can also change what you should pay.

The real shape of the ground

Old topo maps were rough. Contour lines were spaced wide and drawn by hand. They gave a general feel for the slope and little more. That is not enough to design drainage or grading with any real trust.

Modern crews use scanners and drones to map the ground in fine detail. A LiDAR pass can pick up small dips, old fill, and slopes the old map smoothed over. That detail drives smarter grading, safer pads, and fewer surprises during earthwork.

Buried features count too. Old foundations, filled ponds, and past cut-and-fill work leave marks in the data. Seeing them early keeps them out of your budget later.

Lost corners and moved monuments

Every boundary rests on physical corner markers. Over 40 or 50 years, those markers get pulled, paved over, or plowed under. The old record still points to them, but they may no longer be there.

A modern surveyor hunts down what remains and rebuilds the rest from field evidence and math. They tie it all to a coordinate system your engineers and contractors can share. That shared frame keeps the whole team on the same map, which the old paper could never do.

Easements and access that hide in plain sight

Old files list some easements and miss others. Utility lines get added, moved, or abandoned without a clean paper trail. A visible power line or a manhole in the grass often points to a right nobody recorded well.

A current survey maps what is really on the site today. It shows access routes, buried lines, and use rights that shape where you can place buildings. Missing one of these can block a whole section of your plan.

What this means for your project

Do not trust an old survey to size a deal. Treat it as a starting hint, not proof. Order a fresh survey during due diligence, before the money is hard.

Ask the surveyor to compare the old record against current field data and call out every difference. Have them flag encroachments, gaps, overlaps, and easement issues in plain terms. Then loop those findings into your site plan before you spend on design. A few weeks up front beats a stop-work order later.

Frequently Asked Questions

How old is too old for a land survey?

There is no exact expiration date for a survey, but older surveys should be reviewed carefully. A survey from decades ago may reference missing monuments, outdated improvements, or conditions that no longer match the property today. For new construction, financing, or property changes, obtaining an updated survey is usually the safest approach.

Can a new survey change my property lines?

A new survey does not create new property lines. It confirms the location of the legal boundaries based on deeds, records, monuments, and field evidence. What may change is the understanding of where those lines are located on the ground, especially when older surveys contain limited information or measurement errors.

What tools do modern surveyors use that older surveys did not?

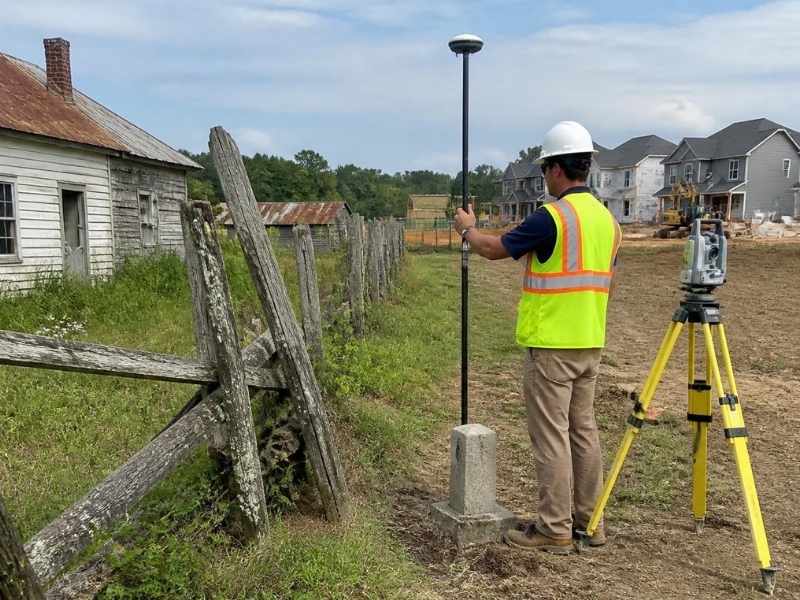

Modern surveyors use advanced equipment such as GPS receivers, robotic total stations, drones, and laser scanning technology. These tools allow measurements to be collected with greater precision and tied to consistent coordinate systems, improving accuracy compared with older methods that relied on chains, tapes, and manual instruments.

Can a modern survey uncover issues that affect a property transaction?

Yes. A survey may reveal encroachments, easements, access concerns, or boundary conflicts that were not obvious from existing records. Identifying these issues during due diligence gives buyers and owners time to address them before closing instead of discovering costly problems later.

Do I need a new survey if I already have title insurance?

Yes, because title insurance and surveys provide different types of protection. Title insurance focuses on recorded ownership issues and defects in the title history, while a survey documents physical conditions such as boundaries, improvements, and encroachments. Using both provides a more complete understanding of the property.
