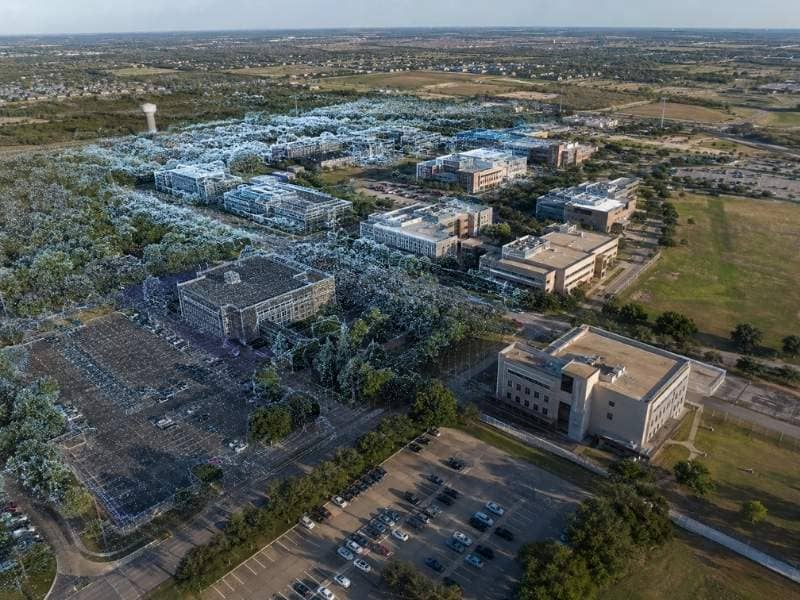

A large campus redevelopment starts with knowing exactly what is already there. LiDAR mapping builds a detailed digital model of the site as it stands today. It captures the ground, the buildings, the walkways, the utilities and more in one accurate dataset. So it gives every design team a shared, reliable base to work from. On a busy McKinney campus, that model keeps a complex project coordinated. Here is how LiDAR mapping supports the effort.

Define the Campus Features Required in the Digital Model

A useful model starts with a clear list. Not every feature on a campus needs to end up in the data. So the team decides which ones the model must include. That keeps the work focused on what the project actually uses.

Common features a campus model captures include:

• Terrain and existing grades
• Buildings, walls and other structures
• Roads, walkways and parking areas
• Landscape zones and visible utilities

Capturing everything without a plan wastes effort. Some features matter for the design, and some do not. Naming the priorities first sharpens the work. Then the model holds exactly what the team needs.

Combine LiDAR With Conventional Survey Control

LiDAR data needs a solid anchor to be trustworthy. Regular survey control and check points give it accurate positioning. So the team ties the LiDAR to that control. That locks the model to real coordinates on the ground.

Without control, the model can drift off true. Check points confirm the data lands where it should. Combining the two methods keeps accuracy high across the whole site. Then designers can trust the positions in the model.

This step also lets the team prove quality later. If a position is ever questioned, the control answers it. That backup makes the whole dataset stronger.

Capture Complex Areas Without Interrupting Operations

A campus keeps running during redevelopment. Occupied buildings, traffic, pedestrians and restricted zones all complicate the work. So the team plans the capture around these active areas. That gathers the data without disrupting daily life.

Poor planning creates conflicts and delays. Scanning near busy zones takes careful timing. Working around schedules keeps everyone safe and keeps the campus moving. Then the model gets built with as little disruption as possible.

Good timing protects the client’s reputation too. Students, staff and visitors barely notice the survey. That smooth process reflects well on the whole project.

Separate Ground, Structures, Vegetation and Temporary Objects

A raw scan mixes everything together in one cloud of points. Classification sorts the ground, the structures, the plants and the temporary objects apart. So the team separates these elements in the data. That produces a clean, usable model.

Unwanted objects clutter the results. Cars, equipment and brush do not belong in the final surface. Classification removes them from the picture. Then the model shows the true campus conditions.

This cleanup is where raw data becomes a real tool. Designers get a clear surface instead of a messy scan. That saves them hours of guesswork down the line.

Deliver a Model That Supports Several Design Disciplines

Many experts will use the same model. Terrain surfaces, point clouds, CAD features and building data each serve a different discipline. So the team delivers a model that works for all of them. That keeps the whole project coordinated.

A shared model prevents costly conflicts. When everyone works from the same data, their plans line up. Coordination gets easier across every team. That teamwork keeps a big redevelopment on track.

One trusted model also cuts down on rework. Fewer surprises mean fewer redesigns. That protects both the budget and the schedule.
